Florian Ocenasek

Roof 2100

A Gemeindebau attic redrawn for the climate its residents will face in 2100.

Year

Summer 2026

Studio

Act of Building, Act III, "Practicing Transformation" · TU Wien

With

BC architects & studies & materials

Team

Natenael Eshaw Abebe, Lena Erk, Clemens Langeder, Florian Ocenasek

Partners

Wienerberger, Wiener Linien

Supervision

Thomas Amann

Made with

Archicad, D5 Render, Photoshop

By 2100, Vienna will face higher average temperatures, longer heatwaves and more tropical nights, during which buildings can no longer cool down passively. In dense structures such as the Gemeindebau this causes severe overheating, especially in upper floors and roof zones exposed to direct solar radiation. At the same time more extreme and unpredictable weather, including intense rainfall, dry periods and unstable seasonal transitions, will further stress buildings.

These changes create overlapping challenges for architecture. Heat gain must be reduced and passive cooling enabled, since mechanical air conditioning is neither sustainable nor affordable at scale in social housing. Buildings must also respond to seasonal variability, as winters, although milder, still require heat retention and protection from cold and moisture. This calls for systems that adapt over time instead of remaining fixed in one mode.

Research questionHow can a roof in Vienna act as a device that combines thermal regulation, temporal adaptability of use, and resilient rainwater management under changing climatic conditions?
Interior view along the converted attic in summer, residents and cats among timber trusses and brick volumes
Summer atmosphere
The same attic in winter, residents gathered near the brick mass with houseplants and a guitar
Winter atmosphere

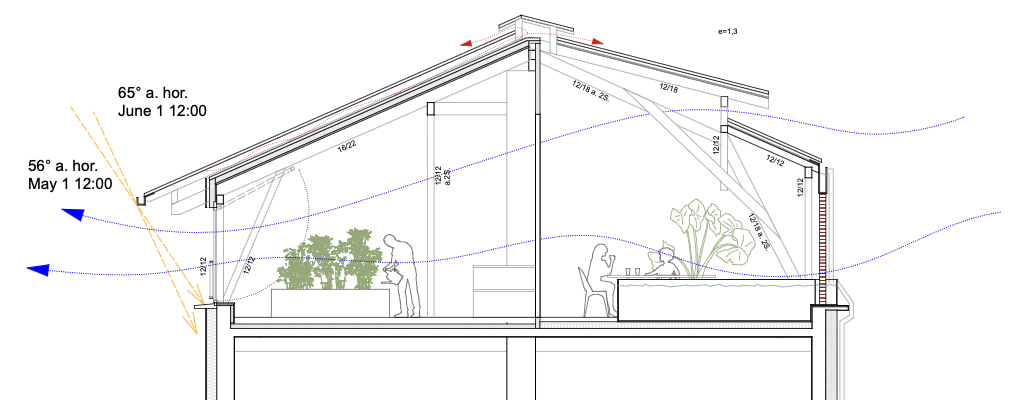

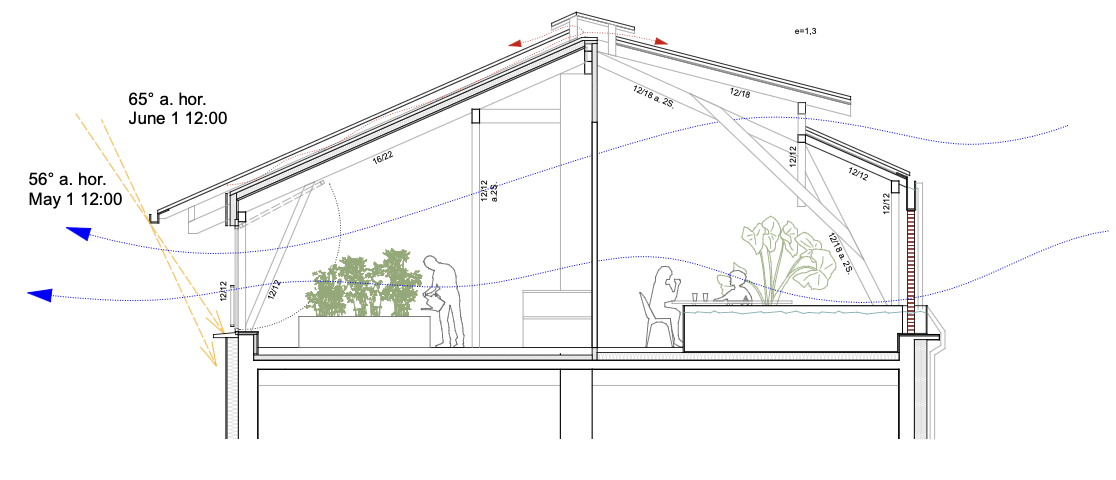

Section marked with summer sun angles, the roof cavity vented and shaded by overhangs
Summer section, cross ventilation, thermal exhaust, sunlight managed by overhangs and evaporative cooling

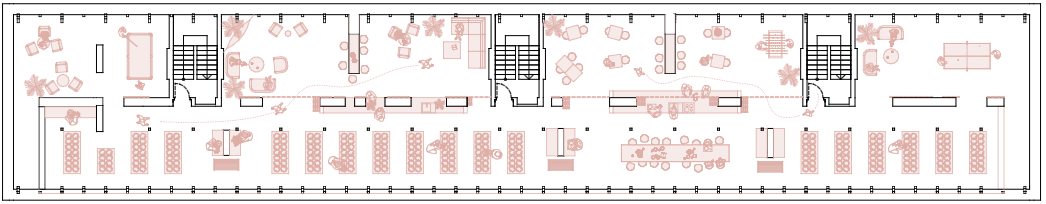

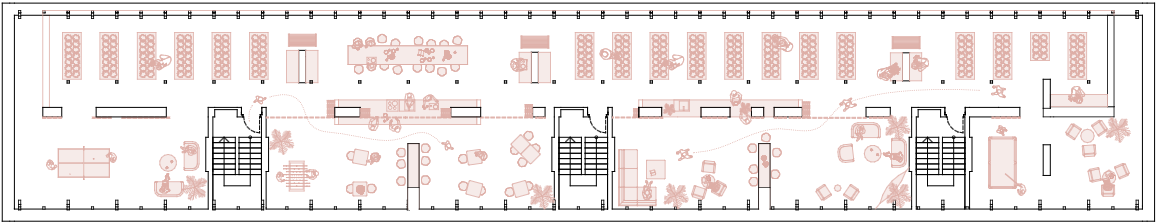

Long floor plan of the attic in its open summer layout, furniture spread the full length
Summer floorplan

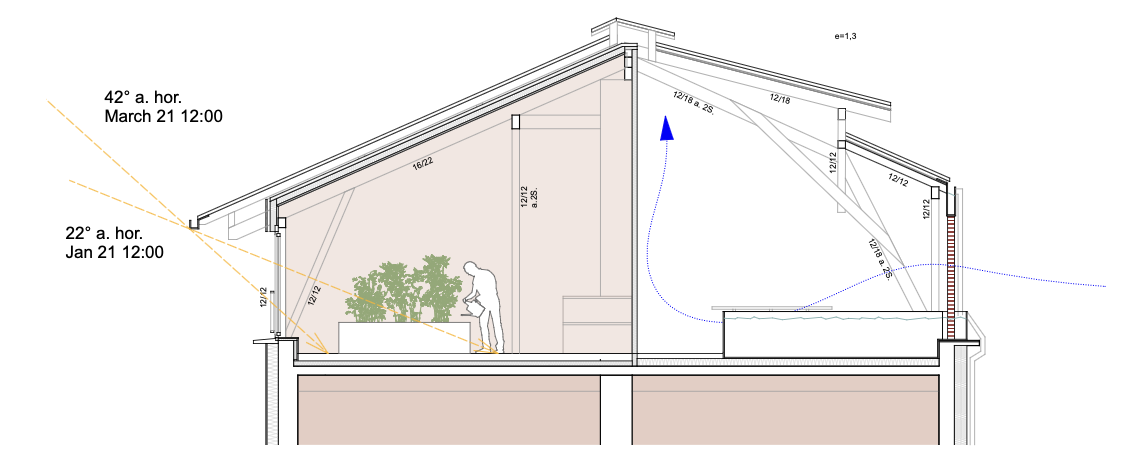

Section marked with winter sun angles, the roof cavity closed for insulation and heat retention
Winter section, the greenhouse effect creates gardening space through the cold months

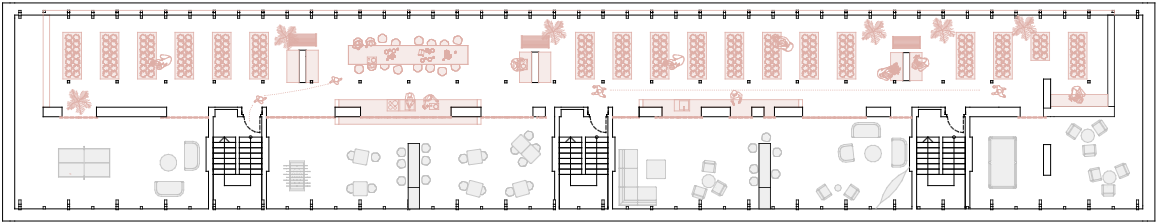

Long floor plan of the attic in its enclosed winter layout, rooms drawn tighter around the stairs
Winter floorplan

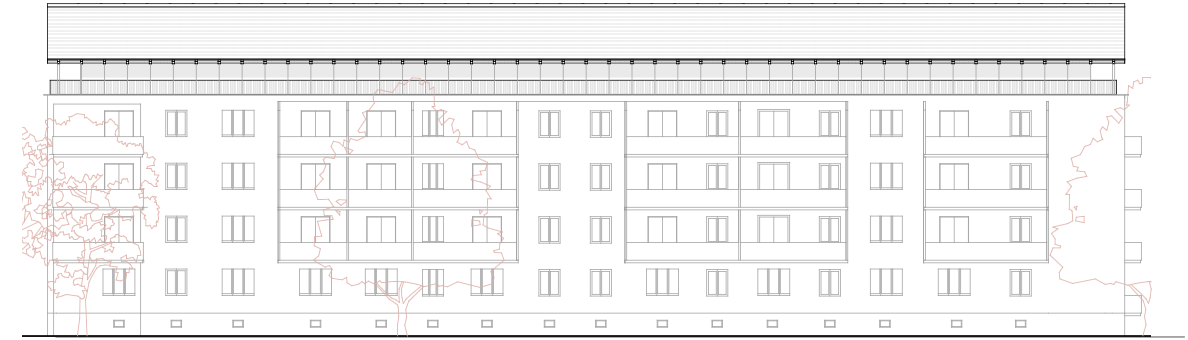

South elevation of the Gemeindebau block with the new roof extension above the existing floors
South façade

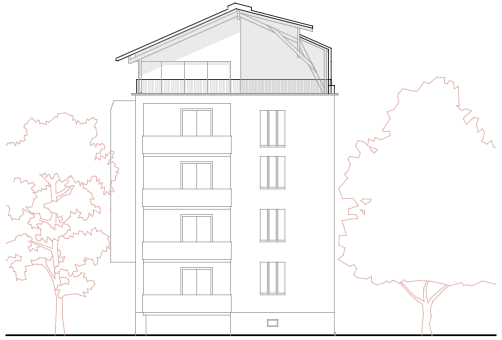

East elevation showing the pitched roof extension set back above the existing façade
East façade

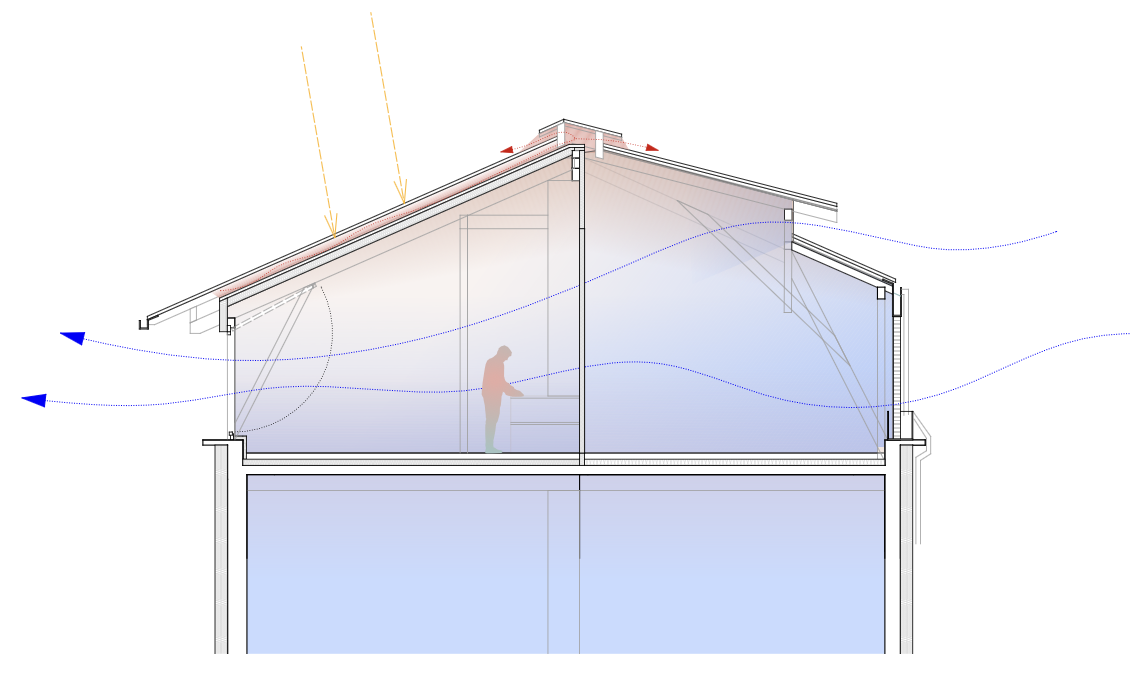

Diagram of summer airflow, hot air rising and exhausting through the ridge while cool air enters low
Climate scheme, summer

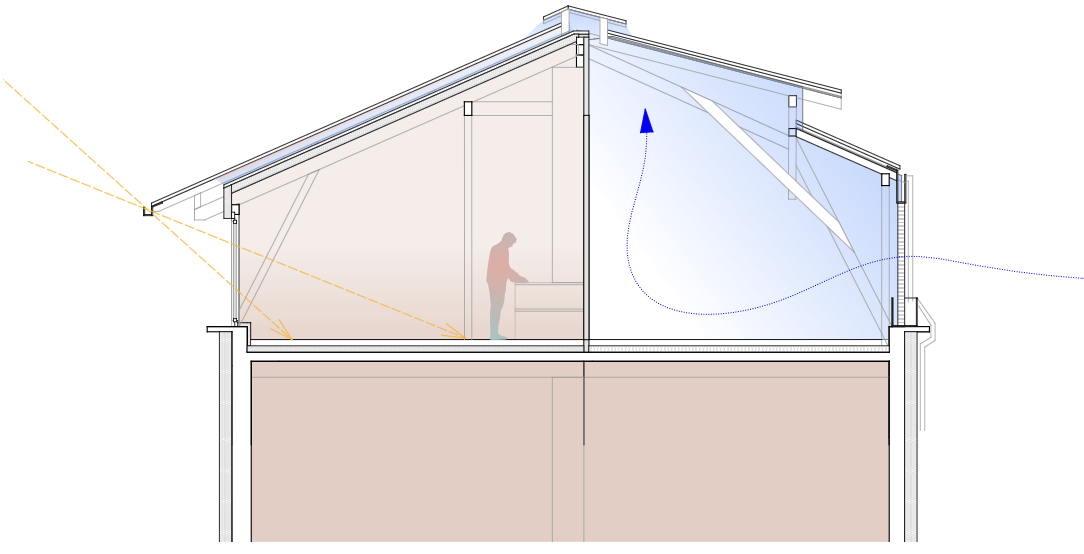

Diagram of winter airflow, the cavity sealed and heat retained around the occupied space
Climate scheme, winter

Thank you to Thomas Amann for initiating and guiding this project, to Bregt Hoppenbrouwers, Henri Uijtterhagen and Laurens Bekemans of BC architects for their input and criticism, and to Wienerberger and Wiener Linien for supporting the research.
